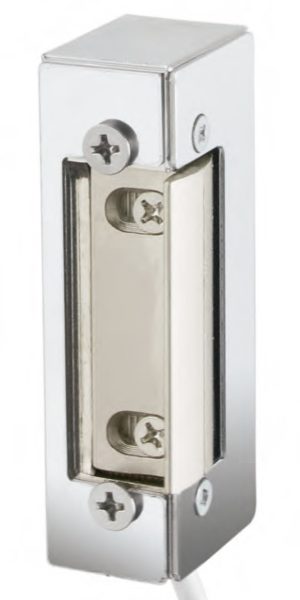

Dorcas 52 Series Fire Rated Electric Strike
52 Series has been developed specially for fire doors and is UNE EN 1634-1:2000 and UNE EN 1363-1:2000 Standard approved. Full steel made, the jaw strength is up to 1000 Kg. For other characteristics please refer to 50 Series. Its minimum size and non handed makes it easy to all installations.
fire
EI 120 MINUTES FIRE CERTIFICATE
FIRE RATED
HIGH HOLD-OPEN FORCE (1000 KG)
SYMMETRICAL
NON HANDED
ADJUSTABLE AND FIX JAW
EN 14846 CERTIFICATION
Mechanism
Recommended face plates
and finishes.
| Installation type | Flush |
|---|---|
| Reversible | Yes |
| Symmetrical | Yes |
| Height | 75,5 mm |
| Width | 21 mm |
| Depth | 29 mm |
| Latch insertion depth | 6 mm |
| Flex Latch Adjustment (F) | +4 -0mm |
| Electrically tested cycles | 200.000 |
| Breaking resistance | 9.850 N |
| Working temperature range | -25 / + 50 ° C |
| Flex Latch (F) | Optional |
|---|---|
| Monoblock Latch | Optional |
| Special flap | No |
| Unlock (D) | No |
| Microswitch (305) | Optional |
| Bidirectional diode | Optional |
| Electromagnetic compatibility | Directive 2014 / 30 / EU |
|---|---|
| WEEE | RII AEE 8015 |
| Low voltage directive | Directive 2014 / 35 / EU |
| Hazardous substances | Directive 2014 / 65 / EU |
| Building fittings | UNE-EN-14846:2010 |
