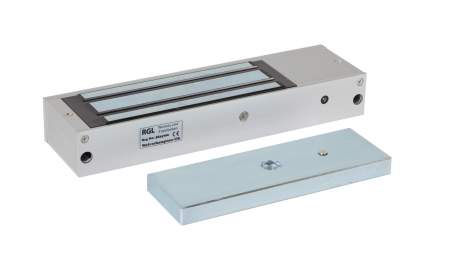

RGL ML1200-MDS Magnetic Lock

Technical specifications

  • Aluminium housing.
  • 12/24VDC @600/300mA.
  • 545kgs (1200lb) holding force.
  • Built in surge protection.
  • ML1200-MDS = Monitored Door Status

Features:

  • Fire Tested (30 & 60 minute timber door sets)
  • Standard magnet.
  • Door Status Monitoring
  • Clean and compact design in aluminium.
  • Single ML1200 LED indication
  • Multi ML1200-M LED indication
  • Monitored (Lock Monitoring)
  • Voltage free relay contacts

(Lock monitoring checks maglock is reporting itself as locked. Door status monitoring has a contact that works independently from the maglock, and shows if the door is open or closed)

Suitable brackets:

  • BK1200ZL (ZL Bracket)
  • BK1200L (L Bracket)
  • AH1200 (Armature Housing)
  • ADJ1200-L (Fully adjustable L Bracket)
Dimensions: 267x73x40 (mm)
Specification
Product CodeML1200-MDS
Dimensions267x73x40 (mm)
DescriptionMonitored Door Status Magnetic Lock (1200lb / 545kg)
DescriptionFIRE TESTED
Weight4.27Kg (Boxed) / 2.79Kg (Unboxed)
