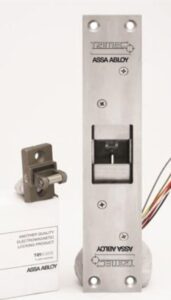

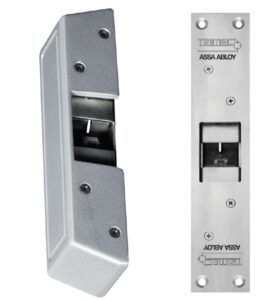

Trimec ES6000 Hook Lock
ES6000 Hook Lock is suitable for swinging doors, sliding doors and is easily attached to wood or steel door frames.
- 680kg holding force
- Robust Construction: Stainless steel components used
- Low Profile: Will protrude only 40mm into door headroom
- Low Current Consumption 12VDC 250mA after 1 sec. (initial current 830mA) 24VDC 140mA after 1 sec.(initial current 530mA)
- Monitored: locked and unlocked
- Tested to 300kg pre load capability
Voltage: Supply voltage 1230Vdc Ground (OV)
Current: 12Vdc – 250 mA after 1 sec. (initial current 830 mA), 24Vdc – 140 mA after 1 sec. (initial current 530 mA)
Monitoring: Door locked (Solenoid) – Door Closed (Latch)
Strength: 1500 lbs. (680kg) static strength rating 70 foot-lbs. dynamic strength rating
Endurance: 250,000 cycles endurance testing Internal Testing achieved: 2,000,000 cycles of operation
PreLoad: 660lbs (300kg) preload capability
Environment: Operational temperature range: 20°C to + 60°C
Lock Body: Cast Aluminium Construction
Lock Body: Solid Stainless Steel Construction
Lock Bolt: Solid Stainless Steel
Power to Open or Power to Lock versions available
Side load (pre-load) capable: Operates freely with up to 300 kg of side pressure
Self latching: Will self latch without power for fire applications
Automatic selection 12 to 30Vdc with back EMF protection and reverse polarity protection
Multi orientation: Can be mounted vertically or horizontally
| Name | Value |
|---|---|
| Brand | ASSA ABLOY |
| Range Name | Trimec |
| Holding force (kg) | 680 |
| Operating Voltage | 12 24 |
| SKU | 116001-010 |
| SKU code | 116001-010 |
